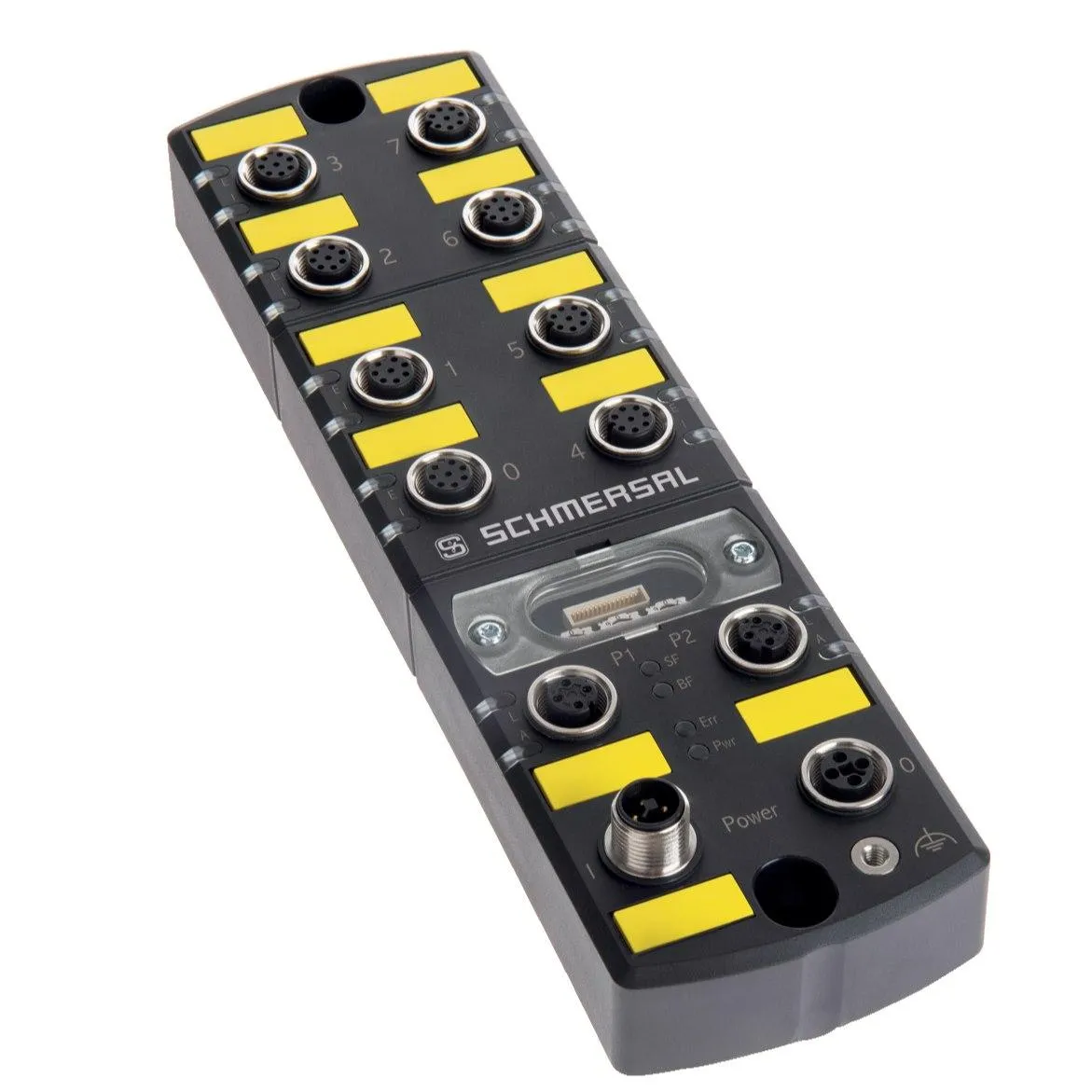

SAFETY DECENTRALISED FIELDBOX SFB

Thanks to the safety distribution box, a wide variety of safety devices can be connected decentrally and freely combined in the programmable safety controller. Simplified connection via M12 connectors enables fast, error-free installation. The distribution box is supplied with voltage via an M12 connector for currents up to 10 A. The 3 mm² cable cross-section enables the distribution boxes to be wired in series with a single central power supply. In addition to electronic and electromechanical safety sensors and switches, light barriers, light curtains and light curtains can also be connected to a single device connector via the Y-adapter. The special feature of the Schmersal SFB is the possibility of connecting up to 8 safety interlocks with 1- or 2-channel control of the interlock function. The ability to connect up to 4 control units with emergency stop buttons, and up to 3 non-safety-related control and signalling devices to a single port, is also a key feature on a single port is also unique.
