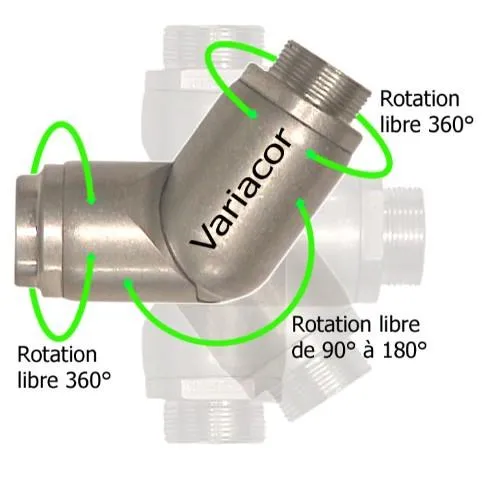

VARIACOR RACCORD LIBREMENT ORIENTABLE TOUS FLUIDES

Products

Information

A travers la gamme DynaVariacor® la société MID propose des raccords brevetés librement orientables, tous fluides. Utilisable, par exemple, aussi bien pour de l’air que de l’eau, huile, peinture, colle, … Ces raccords permettent d’assouplir tous types de tuyaux quelle que soit la pression. En réduisant les efforts et contraintes mécaniques ils facilitent l’utilisation de tous types d’équipements reliés par un tuyau d’alimentation : outillage pneumatique, pistolet de lavage, pistolet de dépose de colle, équipement hydraulique, … Le débit optimum est garanti par un diamètre de passage conservé de l’entrée à la sortie du raccord quelle que soit l’orientation. Disponible en plusieurs matières pour pression et vide, tailles et raccordements : BSP, NPT, Métrique, …

Technical sheet

https://www.variacor.net

Nomenclature

Assembly, fasteningWorkshop, factory, building, equipmentIndustrial supplies and consumablesToolsRobotics

Thématique

AutomatisationEnergiesEnvironmentProduction and maintenanceServices

MID VARIACOR5G108MID VARIACOR, based in Savoie, markets a range of freely adjustable and rotating ball joints for fluid transfer. The use of these “cardan” joints facilitates the use of all types of filling nozzles and drum emptying equipment. They make the supply hoses used to transfer all types of fluids flexible and adjustable. This eliminates unwanted twisting of the hose, which can now be positioned ideally, and reduces premature wear by eliminating repeated bending. With less effort required due to the flexibility of the hose, this coupling also facilitates hose movement, improving user comfort and workplace ergonomics in the case of manual work. In the case of automated work, movements are simplified and the service life of the supply hose is increased. These innovative, internationally patented couplings have excellent flow rates due to the absence of restrictions in the passage regardless of the position of the coupling. Currently available for pressures ranging from vacuum to 250 bar with passage diameters from 4 to 65 mm. Numerous seals are available, adapted to the types of fluids to be conveyed. These compact and robust couplings are available with numerous connections such as BSP, NPT, Metric, etc. Translated with DeepL.com (free version)
