ROBOTIC MEASURING AND CONTROL CELL

ROBOTIC MEASURING AND CONTROL CELL

Products
ROBOTIC MEASURING AND CONTROL CELL
ROBOTIC MEASURING AND CONTROL CELL
ROBOTIC MEASURING AND CONTROL CELL
ROBOTIC MEASURING AND CONTROL CELL
ROBOTIC MEASURING AND CONTROL CELL

Information

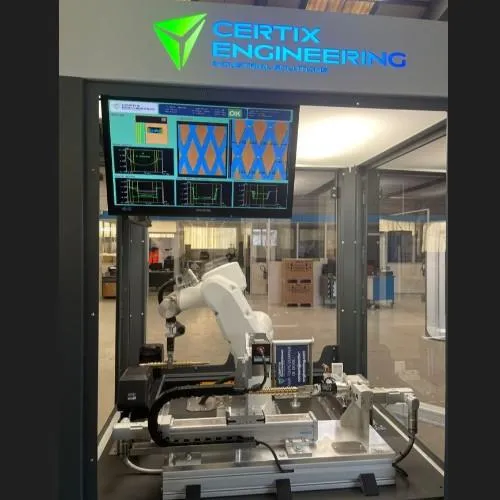

Robotic machine for measuring and inspecting complex machined parts Integration of a STAUBLI 6-axis robot and a FESTO electric gripper for handling parts between stations Integration of KEYENCE measuring systems: a 2D/3D profilometer and a telecentric measuring system for accuracy to one hundredth and one micron respectively Movement combined with workpiece profile control via the integration of an electric axis and a FESTO rotary actuator CERTIX ENGINEERING human-machine interface I/O Link communication with IFM hardware Translated with DeepL.com (free version)
Technical sheet
https://www.linkedin.com/posts/certix-engineering_cap-sur-global-industrie-2026-une-cellule-activity-7435329058801987584-8LKO?utm_source=share&utm_medium=member_desktop&rcm=ACoAACkqXXUBTB9Kx57Ht21rYDbeXQ8qmCzX778
Technical document
https://exposant.gl-events.com/uploads/products/6562a5ce436865f67a4efebc68b6d159.pdf
Nomenclature
Assembly, fasteningAutomationInstrumentation, analysis, measurement, control, visionRoboticsServices, engineeringMachining and material removal
Working machine
Frequency: Continiously
Thématique
Automatisation
CERTIX ENGINEERING5Q21Automatic assembly lines, robotic cells, specialised machinery, handling/lifting equipment, test benches
