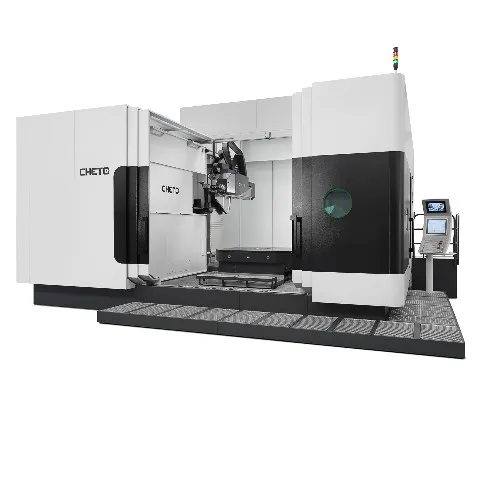

IXN 1000/2000/3000
Products
Information
6 AXES | 7 AXES
TECHNICAL DATA
- X longitudinal travel - 1000 à 4000 mm
- Y vertical travel - 1000 à 1500 mm
- Z cross travel - 800 mm
- W drilling one stroke - 1700 à 2100 mm
- B table rotation - 360º
- A tilting rotation - +35º/-25º
STANDARD EQUIPMENT
- CNC HEIDENHAIN TNC 640
- Electronic handwheel
- Digital drives
- Nitrogen double counterweight
- Absolute linear encoders in axes X, Y and Z
- Absolute angular encoders in axis A and B
- Automatic chip conveyor
- Kinematics / RTCP
- Rigid tapping
- Quick change between drilling/milling
- Coolant tank with automatic filtering
- Submerged pumps for oil recirculation
- High-pressure pump up to 80 bar, 100 l/min | 1,160 psi, 26.5 gal/min
- Telescopic covers in all axes (except drilling axis)
- Complete cover with doors, laminated glass windows and acrylic ceiling
- Spindle tilting +35º/-25º
OPTIONAL EQUIPMENT
- CNC FAGOR 8065
- Wise software system
- CNC SIEMENS SINUMERIK ONE
- ATC up to 120 tools (up to 600 mm | 23.6 in tool length)
- ATC Gun drill up to 5 tools1
- Table with zero clamping system
- Automatic curtain on load/unload door
- Spindle gearbox
- Y axis = 1500 mm | 59.1 in
- W axis = 2100 mm | 82.7 in
- V axis up to 1900 mm | 74.8 in
- Oil mix collector
- Electronic touch probe and tool preset laser system
- AC for electrical cabinet
- Immersion chiller for oil/emulsion
- Pack Connectivity i4.0
Nomenclature
Machining and material removal
Working machine
Frequency: Continiously
