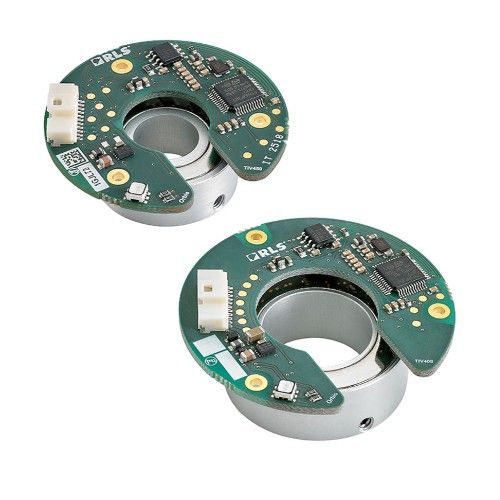

Orbis™ Rotary Magnetic Encoder Module

Orbis™ is a non-contact through-hole rotary encoder designed for applications where a typical OnAxis encoder cannot be mounted at the end of the rotating shaft due to space constraints. Orbis™ through-hole encoder system consists of a readhead and diametrically magnetised permanent magnet ring. Output signals are provided in industry standard absolute, incremental, and analogue sinusoidal (sin/cos) signals. Orbis provides BISS-C, SPI, SSI, Asynchronous serial and PWM communication.
