TVM

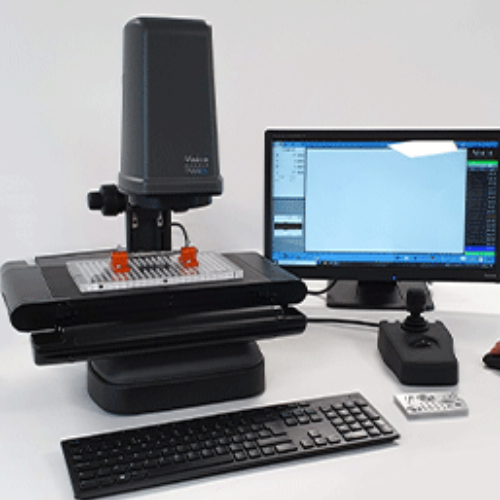

Instant FOV Video Measurement System - 3 to 4 micron accuracy TVM offers instant and accurate 2D measurement in the field of view (FOV) at the touch of a button. Larger components can be measured with a movable stage for a fast and flexible solution. The TVM series uses telecentric optics combined with collimating illumination, reducing the light refraction effect that occurs when viewing a surface with one side parallel to the optical axis. This results in sharper edges on turned parts and therefore more accurate measurements Quick Place and Press Functionality Exceptional ease of use eliminates operator deviations. No need for focus adjustment or sample positioning during measurement A new category of measurement system from Vision Engineering. TVM20 and TVM35 mark the beginning of a new era for fast and flexible measurement on the shop floor. Combined, the advanced optical design and simple yet powerful software provide a competent metrology system that can measure components of any shape. With TVM, there is no need to position the part, simply place the part in the field of view and then run the program. Hundreds of measurements (in the field of view) in just a few seconds, TVM is ideal for customers who need the fastest and easiest way to measure their component parts. Instant measurement Field of view measurement is ideal for 2D measurement of small components up to 35 mm. By measuring in the field of view, the measurement can be instantaneous. In addition, the gap between operators is eliminated, as there is no need to position and adjust the focus of the sample, which is not only time-consuming, but also depends on the individual skills and habits of the operator. Measure entire components in seconds Use as a simple profile projector or video measurement system Measure components of any shape: flat, square or cylindrical Quality assurance results, with full geometric tolerancing Compact, space-saving design Modular software can be upgraded to enhance measurement capabilities Application: Very popular in machining companies. Any feature you can “see” in the field of view. TVM is ideal for profile measurement of small flat components, such as machined or pressed parts, washers, gaskets, O-rings, connectors, sectioned extruded materials, low-density printed circuit boards and flexible circuits, as well as thin parts, including bottle caps, medical tubing, small medical devices, housings, syringes, and much more. Used in precision engineering and electronics, aeronautics, watchmaking, automotive, plastics, medical devices... The fixed stage FOV system allows instant and precise measurements of small components, while the integration of a manually controlled stage extends the measurement for larger components up to 200 mm x 100 mm.
