XtrapulsPacHP all-digital drives with sinusoidal PWM control are servo drives that provide the control of
brushless AC motors with a position sensor.
The standard control interface can be:
- CANopen
- EtherCAT
- PROFINET
- analog,
- stepper motor emulation,
- logic I/Os.
the XtrapulsPacHP range also offers more sophisticated functions such as:
- DS402 including position capture,
- Master/slave and electronic gearing functions,
- Positioner with motion sequencing.
All versions are delivered in standard with the integrated safety function Safe Torque Off (STO)

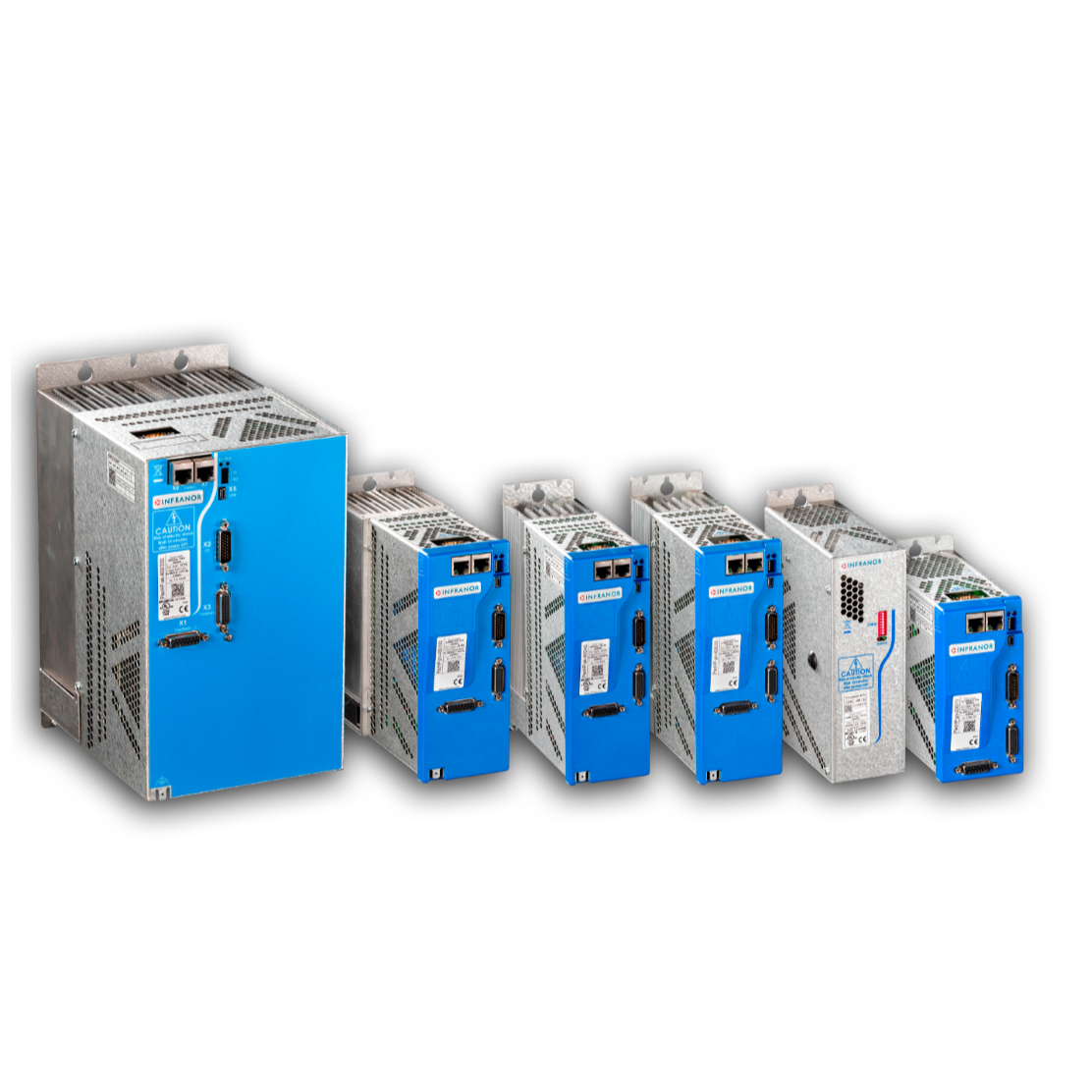

With its very small dimensions, the XtrapulsPacHP is available in various designs:
- stand-alone or multi-axis version,
- standard forced air, push-through or cold plate cooling versions.
Series XtrapulsPacHP drives are fully configurable in order to fit various applications
