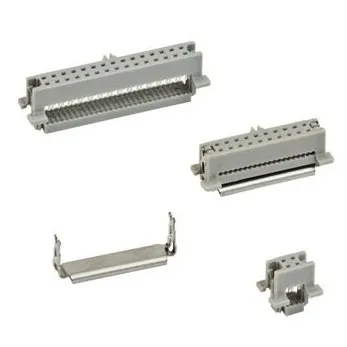

Wiremount & Boardmount Connectors

3M Socket 451 and 3M Header 452 Series: reliable connections with more board space. 3M™ Ribbon Cable Wire Socket Assembly 1.27 mm (0.050") Pitch 451 Series: • Delivers high connection density to ribbon cable applications • Extremely small 1.27mm (0.050") pitch saves space • Enables cable end and feed through termination as well as mass termination • Available friction latches help protect against accidental box header disconnects • UL and CUL Listed • Mates with 3M™ Shrouded Boardmount Header 1.27 mm (0.050 in) Pitch Latch and Eject 452 Series 3M™ Shrouded Boardmount Header 1.27mm (0.050 in) Pitch Latch and Eject 452 Series: • Delivers high connection density to ribbon cable applications • Extremely small 1.27mm (0.050") pitch saves space • Available friction latching, and ejection system enables reliable connections in challenging environments • UL and CUL Listed • Mates with 3M™ Ribbon Cable Wiremount Socket 1.27mm (0.050”) Pitch 451 Series The brands listed above are trademarks of 3M.
