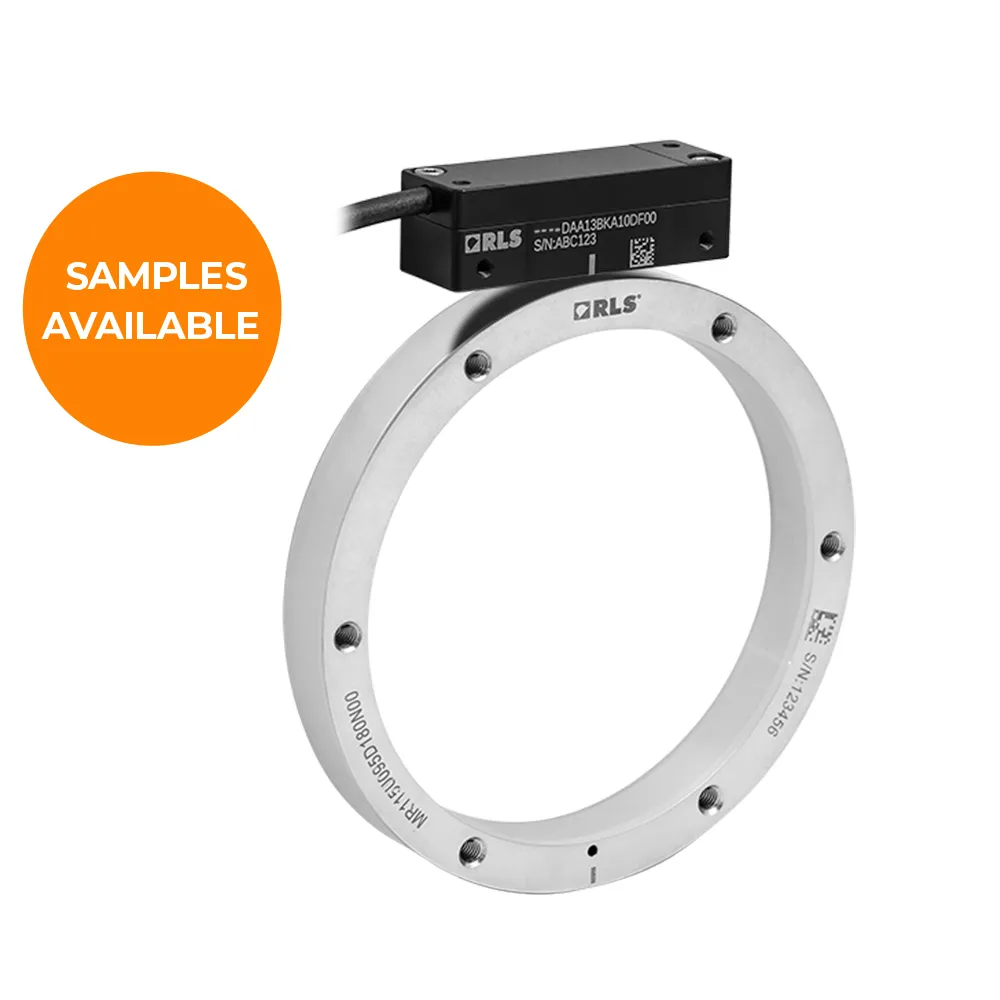

Artos™ Rotary Absolute Magnetic Encoder System

Artos™ is an absolute magnetic encoder system designed for motion control applications as a feedback element for angle and velocity control loops. A highly reliable measurement principle and processing provide low position latency, high resolution and angular velocity. The robust design protects the readhead and magnetic ring from liquid ingress and high temperatures, so they remain undamaged even in extremely contaminated and hot environments. Features: - True absolute after power-on - Resolution up to 23 bits - Accuracy up to ±15 mdeg - Revolution speed up to 25,000 RPM - BiSS, SSI, ABZ outputs - Wide operating temperature range from –20 °C to 85 °C - Robust EMC and IP67 construction - Ring size up to OD 325 mm - Enclosed and PCB-A module options available
