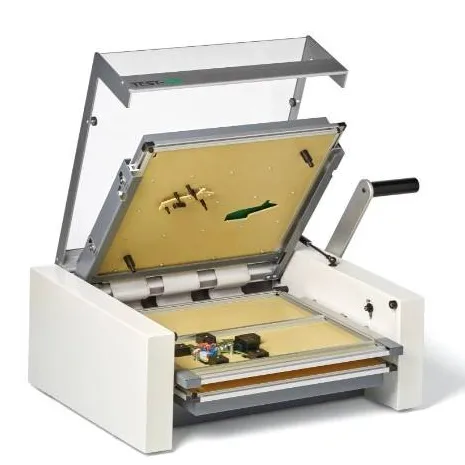

TEST-OK 4000-BPL

The TEST-OK 4000-B-BPL offers dual side test probe contacting of the UUT. The system includes the TCC 1800–UE Test Controller Card and TEST-TRACK software. Besides the standard TCC 1800-UE an additional Expansion Board can be inserted. This board offers the possiblity to add electronic circuits, and scales up the system with 96 test chanels. TEST-OK offers standard Expansion Boards for Boundary Scan solutions. Significant budget savings can be achieved if recurrent circuitry on a TEST-OK module is transferred to an Expansion Board. The system supports the TEST-OK module system. In case downholders are necessary, TEST-OK 4000-B-BPL can be ordered with the Magnetic Downholder System. The system can be ordered with an optional 2x24 VAC power supply option.
