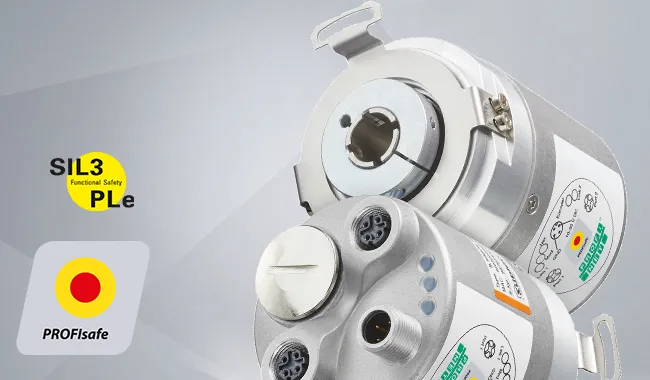

Absolute encoder PROFIsafe | SIL3 |PLe
Awards
Information
Based on a developed modular and high-performance Industrial Ethernet encoder platform, the S58 multiturn encoders are equipped with multiturn gearboxes. Due to the new design, without a classic fieldbus cover, the new encoders are space-saving and therefore ideal even for the tightest installation spaces. Special customer requirements can also be implemented; both on the firmware and hardware side: from special default configurations, additional telegrams, surface protection for extreme requirements, through to optional features.
For Kübler, "future-proof" is a special aspect of this new Industrial Ethernet platform. New firmware versions can be loaded directly via an update. This is done quickly and easily via the integrated web server in the encoder. This gives users the opportunity to meet future requirements in the application. This is also rounded off with the use of the latest protocol stacks, which thus bring significantly more opportunities with them.
_Robust: Sturdy bearing construction in Safety-Lock™ Design for
resistance against vibration and installation errors.
_High resolution: Singleturn 15 bit (safe) or 24 bit (non safe). Multiturn 12 bit (safe)
_Safe: SIL 3, performance level PLe, safety category Cat. 3. Fully redundant multiturn information due to redundant multiturn gearbox. Transmission via safety telegrams 36/37, according to BP and XP.
_100 % future-proof: Implement features and adaptations quickly and easily
Web page
Argument
_Une même plateforme pour toutes vos applications safe et non-safe: le client en fonction de son application ou de l'évolution des exigences de sécurité peut intégrer facilement le codeur adapté.
_Utilisation de télégrammes standards = commissioning + simple et + rapide pour le client
_Dernières fonctionalités PROFINET (PROFINET IO, RT, IRT), PROFIdrive (mode isochrone), PROFIsafe
= compatible avec les automates les + récents
= permet l‘intégration dans des applications avec différentes exigences en termes de performances
= interopérabilité entre différents constructeurs de commandes et d‘entraînements
= Idéal pour des applications hautement synchrones comme par ex. la synchronisation d‘axes
_Serveur web intégré pour la mise à jour du firmware
_Utilisation de composants récents pour assurer une garantie de délai de livraison et une pérénité
_Certification PROFINET via PNO
_Certification PROdrive via PNO
_Certification PROFIsafe via PNO et TÜV
_Certification Encoder Profil via PNO
