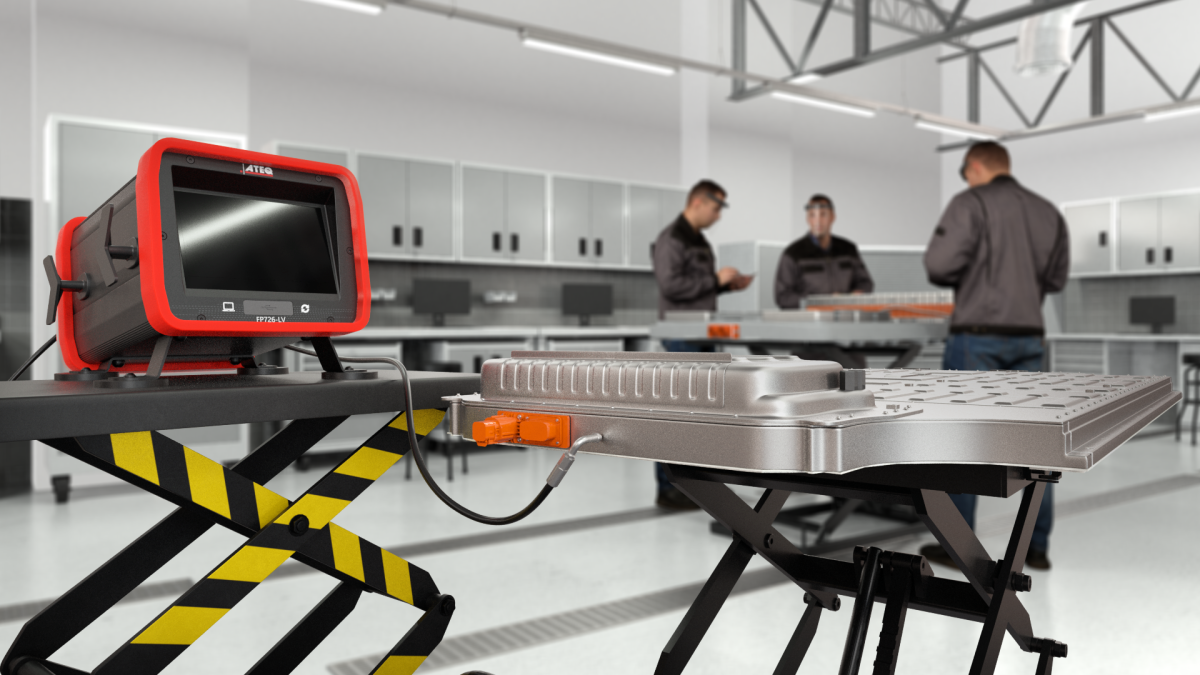

FP726LV
Awards
Information
The most advanced and accurate leak tester dedicated to the EV/HEV R&D and expertise laboratories
Fully secured system with embedded battery pack protections (hardware & software)
Embedded database (battery types, parameters & thresholds)
Self generating system:
– Pressure: 3 bar/43.5 psi (max)
– Vacuum: -1 bar/-14.5 psi (max)
The purpose of the instrument is to generate:
Autonomous leak tester for EV/HEV battery packs (cooling system & housing)
Capability to detect a leak of 10 cc/min on 300 liters volume in less than 10 mins
Complete traceability with test method and results based on industry standards
∆P (Pa, 1/10 Pa) Flow units (sccm, cm3/min)
Intuitive user friendly interface with Icon driven menu for easy navigation
Web page
Argument
Permet de tester l'étanchéité de très gros volumes comme les batteries EV.
Capacité à détecter une fuite de 10 cc/min sur un volume de 300 litres en moins de 10 min
