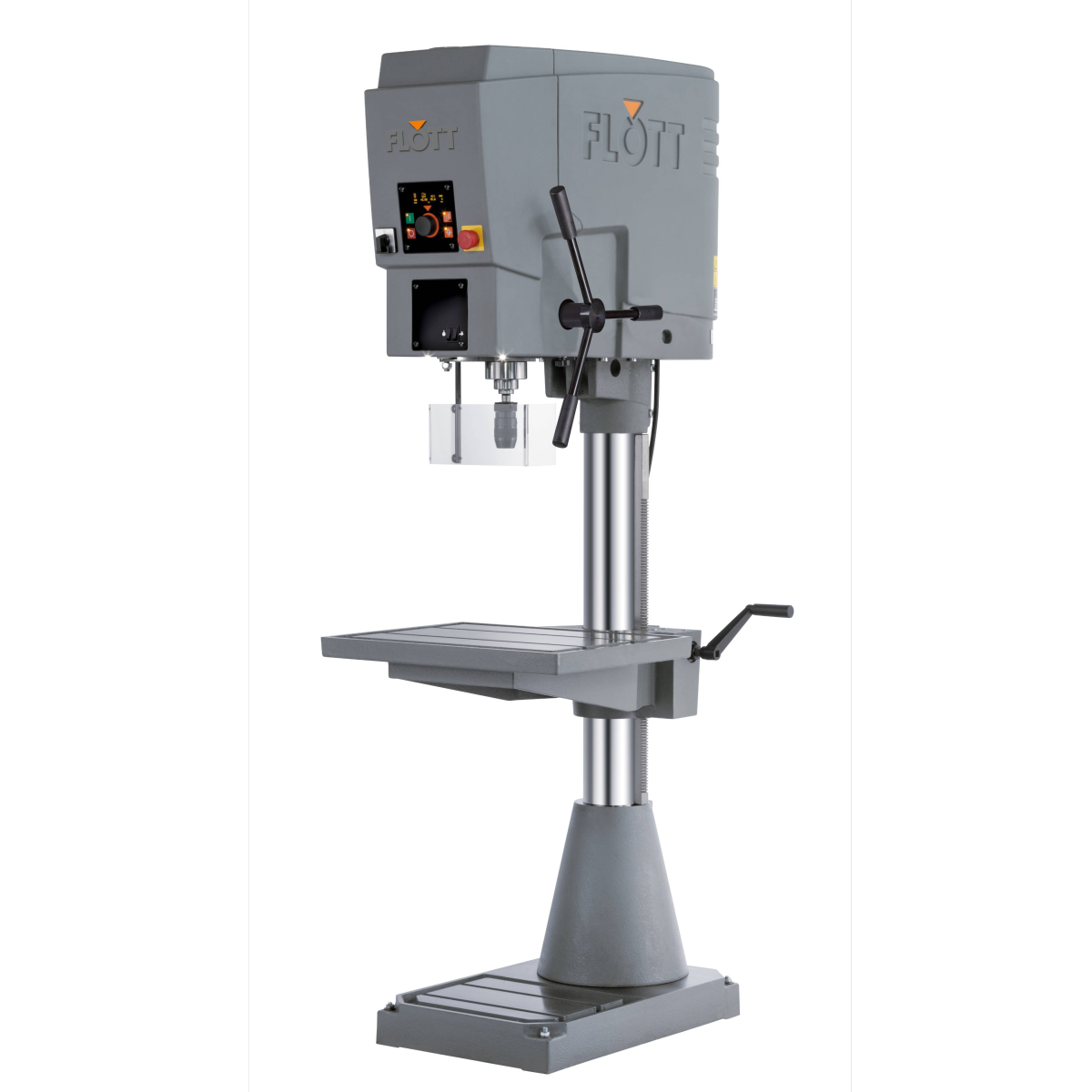

FLOTT SB 30 Plus R3 - Large format Column drill press

Available in R1, R2 or R3 version depending on speed range : Drilling capacity/normal drilling performance : R1 (measured Torque Nm) : 27/32 (100) R2 (measured Torque Nm) : 25/30 (70) R3 (measured Torque Nm) : 30/35 (200) Thread cutting performance max. : R1 : M24x3 R2 : M20x2.5 R3 : M30x3.5 Spindle : MT2 - Concentricity < 0,01 mm Drilling depth : 125 mm Distance column-spindle : 300 mm Column diameter : 125 mm Distance Spindle/table : 150-700 mm Useable table surface (W x L) : 590 x 450 mm T-slot size (arm), distance : number 2, 160 mm Width measurement : 14/26 mm Table height adjustment : with toothed rack Speed indicator : digital Drilling depth indicator : digital Drilling depth stop : with fine tuning Feed : by hand Motor three-phase current 400 V with frequency converter : 3.0 kW Spindle speed, stepless : R1 (1-stage) : 0-1000 rpm R2 (1-stage) : 0-1600 rpm R3 (2-stage with transmission) : 0-4000 rpm Dimensions (L x P x H) : 610 x 900 x 1980 mm Weight : 370 kg Standard equipment : Main switch Thread cutting system Control panel with OLED display Robust, high-quality drill head hood with front that is tilted ergonomically LED lighting Ergonomic drill depth stop that can be adjusted quickly Continuous speed regulation via the central knob Emergency stop button Thermal overload protection Spindle stop Drill protection with electr. fuse Connecting cable with CEE plug 3-year warranty for single-shift operation
