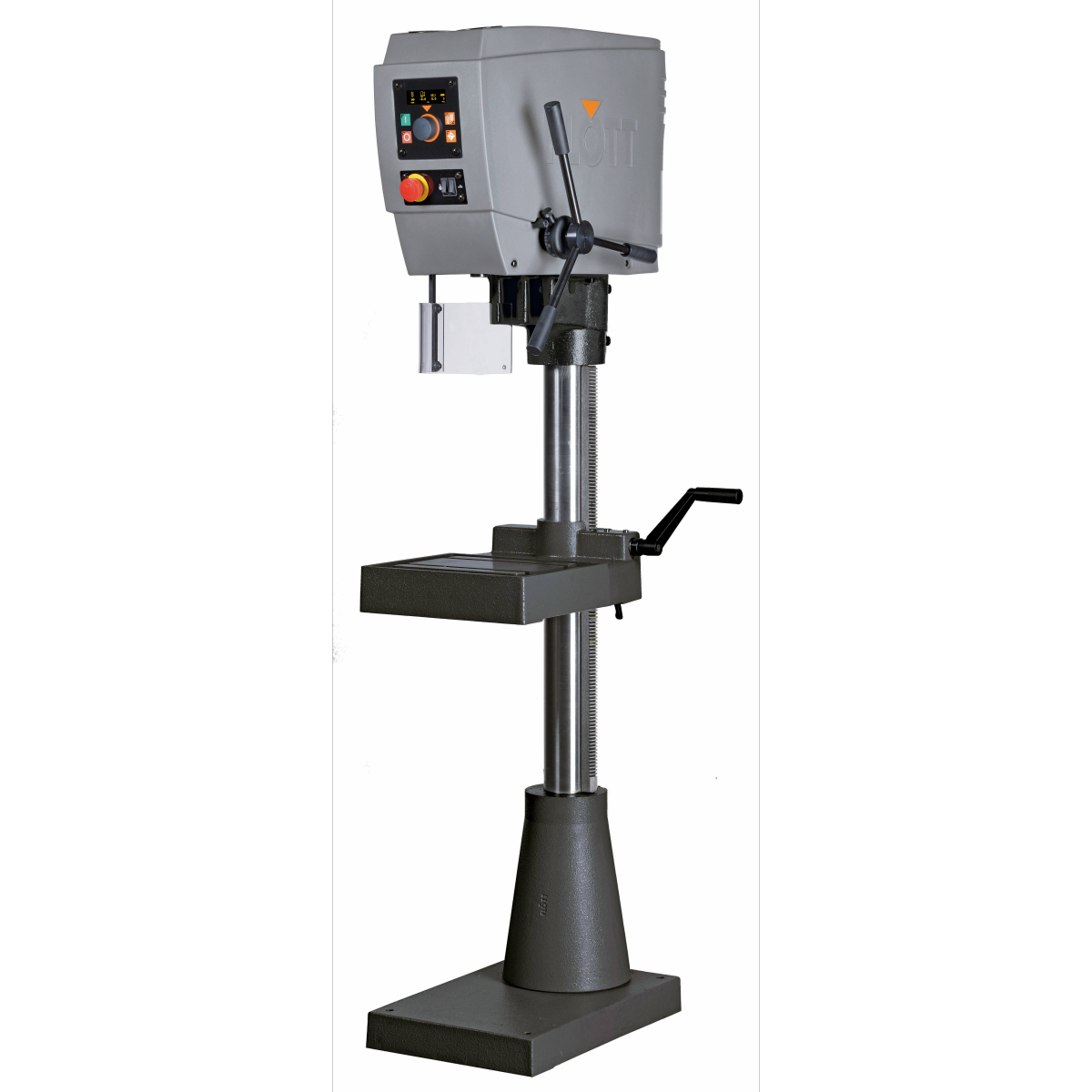

FLOTT SB 20 FB Plus - Medium format Flow drilling machine

Flow drilling at 3 mm sheet thickness : 8 mm Drilling capacity / normal drilling performance : 20/23 mm Thread cutting performance max. : M14 Spindle : MT2 - Concentricity < 0,01 mm Drilling depth : 100 mm Distance column-spindle : 240 mm Column diameter : 82 mm Useable table surface (W x L) : 340 x 280 mm T-slot size (arm), distance : Number 2, 125 mm Width measurement : 13/26 mm Speed indicator : digital Drilling depth indicator : digital Drilling depth stop : Thrust ring that can be adjusted quickly Table height adjustment : with toothed rack Feed : by hand Motor three-phase current 230 V with frequency converter : 1.5 kW Spindle speed, stepless : 40-4000 rpm Dimensions (L x P x H) : 355 x 705 x 1825 mm Weight : 195 kg Standard equipment : Thread cutting system Control panel with OLED display Robust, high-quality drill head hood with front that is tilted ergonomically LED lighting Ergonomic drill depth stop that can be adjusted quickly Continuous speed regulation via the central knob Emergency stop button Thermal overload protection Spindle stop Drill protection with electr. fuse Connecting cable with CEE plug 3-year warranty for single-shift operation Flow drilling serves to produce extrusions in thin-walled metallic materials. The flow drilling procedure creates a socket in the existing material by reshaping it. This material extension increases the number of supporting threads to threefold to fivefold. The material is not machined but used to create resilient connections. The advantages of flow drilling are : Low costs per thread Highly resilient connections High-quality threads No special equipment Low start-up costs No external material Fewer production steps No chip disposal FLOTT recommends UNIMEX FORMDRILL flow-drilling and flow-tapping systems for demonstration at the stand. See www.fluopercage.fr
