FLADDER CC

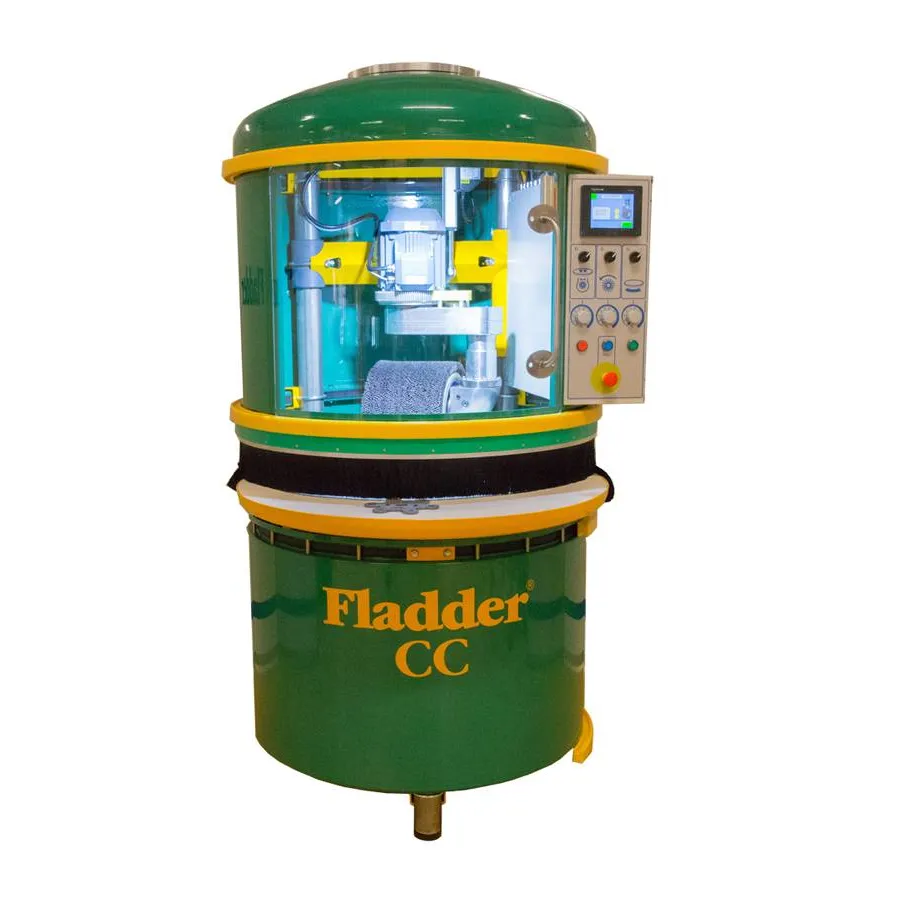

Fladder Danmark A/S is introducing a new deburring machine: FLADDER CC The name CC is referring to - the Cylindrical shape of the machine - the Concentric movement of the abrasive tools - the Circular transport unit - the deburring costs are low FLADDER CC is a machine with a footprint of only approx.. 1,5 m². It is easy to move if needed as it does not need neither foundation nor to be fixed to the floor. Easy to get started: Just plug in to the power and the dust collecting unit. Ready to go! The FLADDER CC is built with a lower and upper cylindrical section. Between these sections a circular vacuum table is rotating allowing workpieces to be fed manually or automatically. The displaced turning table will transport the workpieces into the working area where the workpieces are deburred from multiple angles with a concentric movement of the tools. For the operator the process is obviously an advantage: The functions of loading and unloading the machine is at the same position. It saves time and increases the efficiency. Like our GYRO series this machine has a strong vacuum system for fixation of the workpieces. In fact the vacuum is stronger. The operation of the machine is very easy: A control panel is within reach for fast and easy adjusting of the functions and with a touchscreen. A big sliding glass door combined with a strong internal flood light gives the operator full supervision of the process. The deburring is a dry process. As the functions in the machine are controlled by means of frequency inverters the power consumption is low. Perfect working conditions as the noise level is very low.
